Description
| Parameter | Details |
| System Capacity | 3.2 kW |
| Phase | Single Phase |
| System Type | On-Grid |
| Inverter Model | GT-3.3-GXS1 |
| Solar Panel Type | 530 W MONO DCR (Bi-Facial) Solar Panel |
| No. of Panels | 6 |
| Net Metering | Supported |
| Subsidy Scheme | PM Surya Ghar Muft Bijli Yojana |

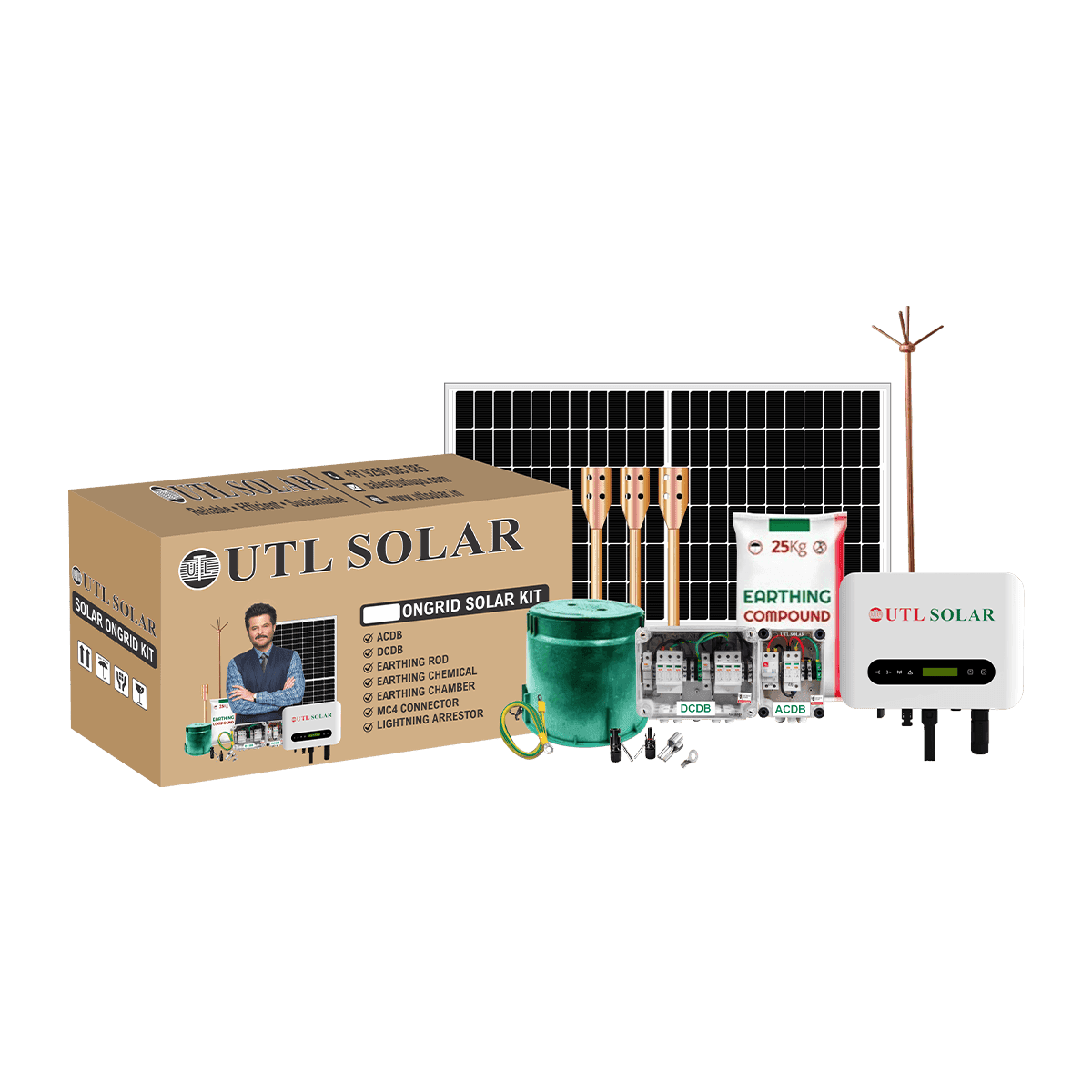

Solar Kit
| S.No. | Component | Specification |
| 1 | Ongrid | UTL 3.3kW Single Phase Ongrid Inverter-1Pc |
| 2 | Solar Panel | UTL DCR 530WP Mono Bifacial Panel -6 PC |
| 3 | DCDB | Solar DCDB 1 in 1 Out Inbuilt Elmex DC Fuse 30A, Elmex SPD 600V |
| 4 | ACDB | Solar ACDB Single Phase Inbuilt Havells AC MCB 32A, Elmex AC SPD 320V |
| 5 | MC-4 Connectors | MC4 Compatible Connectors (Pair) -4Pc |
| 6 | Lightning Arrestor | Conventional Type LA 1m High Copper Bonded with 4/5 Spike (80-100 Micron) 1Pc |
| 7 | Earthing Kit (Earth Rod) | 1 Meter Long Copper Bonded Electrode, 16mm Dia (80-100 Micron)-3Pc |
| 8 | Earthing Kit (Earth Chemical) | Earthing Chemical Bag 25 Kg -1Pc |
| 9 | Earthing Kit (Earth Chamber) | Earthing Pit Cover Heavy Load Bearing Capacity 5 Tonnes -3Pc |
Warranty & Installation
Warranty
10 years Ongrid Inverter Warranty
10 Years Solar Panel Product Warranty
27 Years Solar panel Performance warranty
- Electrical BOS components are covered as per UTL standard warranty policy
Installation
- Installation must be done by a qualified installer
- UTL Solar does not provide installation services with the kit
- Improper installation may affect performance and subsidy approval
